Basic Specifications
Jam Signal Type：Drones RC2.4G/5.8GHz/GPS GLONASS L1 Signals
Output Power：Total 20W，5-10W each band
Jam Radius：100-500 meters
Power Supply：AC110-240V to DC24V
Cooling System：High efficiency aluminum alloy radiator
Working Time：Build-in battery: 24V 4Ah Working Time:1.5Hours
Product Size：450*105*60mm
Product Weight: appr.1.5kg

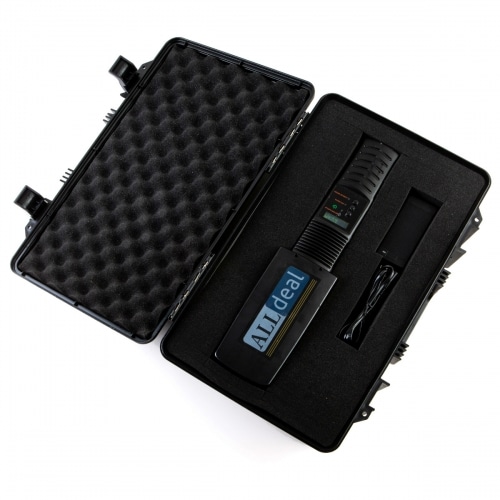

Package Contents：Jammer Host x 1, Battery Charger x1
| Key specifications：D1-DRONE | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | RC2.4G | 2400-2500MHz | 40dbm / 10W |
| 2 | RC5.8G | 5725-5850MHz | 37dbm / 5W |
| 3 | GPSL1 and Glonass L1 | 1560-1620MHz | 37dbm / 5W |
| OPTION | GPSL2+L5 | 1170-1280MHz | 37dbm / 5W |
| RC 868/912 | 868-916MHz | 40dbm / 10W | |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC24V) Build-in battery: 24V 4Ah Working Time:1.5Hours |
|||
| Dimension: (length, width, height) 450*105*60mm | |||
| Package Size: 480x 115 x100mm N.W:1.5kg G.W:3.0kg | |||
| Total Power:20W Shielding Radius: (100-500 meters@-75dBm. Still depends on the distance of drone and remote control. |
|||
| Warranty: One year from delivery date. | |||
Product Description

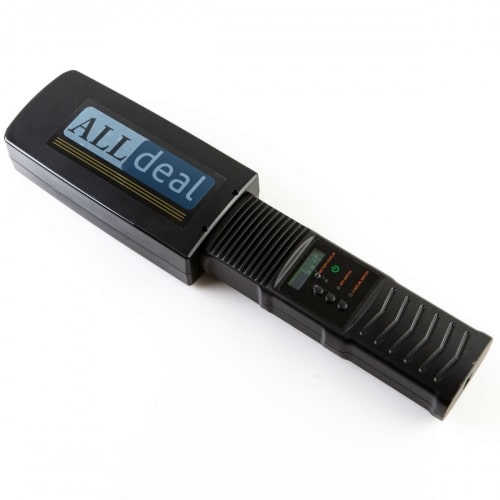

The latest mini handheld all-in-one drone signal isolator with directional antennas for Cover 100% Drones UAVs,Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series…
Light weight portable, build-in high gain 10dbi directional antenna ,Jamming distance 100~500 Meters,Built-in Battery continue working 1.5Hour.
Advantage
All in one handheld design, Mini size and light weight
Output power total 20w, Build-in 3-In-One High gain 10dbi directional antenna, shielding 100-500m,Still depends on the distance of drone and remote control.

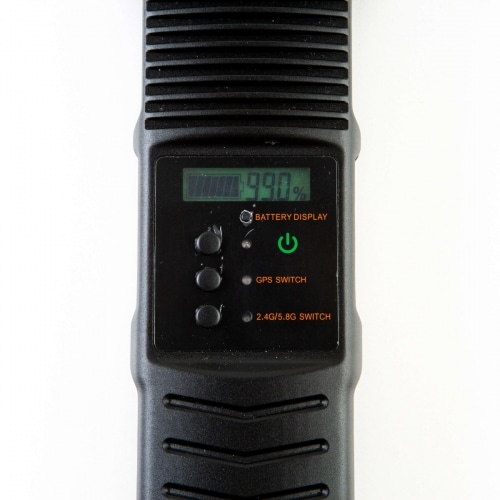

Each unit can jam up to 3 frequency bands simultaneously, each frequency band is separate and with power switch to ON or Off, LED indicator lights display power supply
100% safe VSWR over protection for each modular
Built-in Battery, Operating Time around 60 Minutes,
Battery Power and charger status & working Current display via LED screen.
OEM Customized Service
Silkscreen OEM service can be offered.
Application
1) Protection of prohibited areas, such as: prison, military management area, national strategic resources projects, nuclear industry facilities, airports, political regions and etc;
2) To prevent the leakage of information on the scene, such as: major criminal cases on-site, urban management law enforcement scene, an important security venues, political followers protection, large-scale performance rehearsal, archaeological excavation site, large groups event site;
3) To combat the use of unmanned aerial vehicles as a carrier of illegal activities, such as: transport / drug trafficking, smuggling, illegal goods or information transmission.
List of drones Spectrum can fully disable/jam:
Camera drones: DJI Phantom 4, DJI Phantom 3, DJI Inspire 1, Yuneec Q500 4K, Yuneec Typhoon H 4k, 3DR Solo, Parrot Bebop
Racing drones: TBS Vendetta, IRC Vortex 250 Pro, IRC Vortex 285, Lumenier QAV250, Eachine Racer 250 RTF
Toy Drones: Soma X5C, Hubsan X4, Blade Nano QX, LaTrax Alias, Parrot AR Drone 2, Proto X
and much much more…
